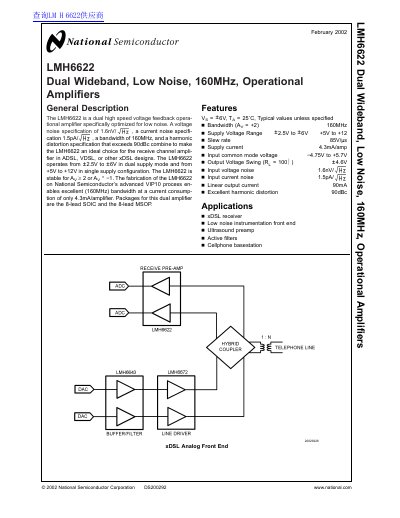

The LMH6622 is a dual high speed voltage feedback operational amplifier specifically optimized for low noise. It has a voltage noise specification of 1.6nV/, a current noise specification of 1.5pA/, a bandwidth of 160MHz, and a harmonic distortion specification that exceeds 90dBc, making it an ideal choice for the receive channel amplifier in ADSL, VDSL, or other xDSL designs. The LMH6622 operates from ±2.5V to ±6V in dual supply mode and from +5V to +12V in single supply configuration. The LMH6622 is stable for AV ≥ 2 or AV ≤ −1. The fabrication of the LMH6622 on National Semiconductor’s advanced VIP10 process enables excellent (160MHz) bandwidth at a current consumption of only 4.3mA/amplifier. Packages for this dual amplifier are the 8-lead SOIC and the 8-lead MSOP.
The LMH6622 is a dual high speed voltage feedback operational amplifier specifically optimized for low noise applications. It features a voltage noise specification of 1.6nV/√Hz and a current noise specification of 1.5pA/√Hz at 100kHz.
The device operates from +2.5V to +6V in dual supply mode and from +5V to +12V in single supply configuration. It is stable for gains of Av = 2 or Av < -1 and is fabricated on National Semiconductor's advanced VIP10 process.
| Bandwidth (Av = +2) | 160MHz |
|---|---|
| Supply Voltage Range | +2.5V to +6V / +5V to +12V |
| Slew Rate | 85V/us |
| Supply Current | 4.3mA/amp |
| Input Voltage Noise | 1.6nV/√Hz |
| Input Current Noise | 1.5pA/√Hz |
| Linear Output Current | 90mA |
| Harmonic Distortion | > 90dBc |
The typical bandwidth for a gain of +2 is 160MHz.
It operates from +2.5V to +6V in dual supply mode and from +5V to +12V in single supply configuration.
The input referred voltage noise is 1.6nV/√Hz and the current noise is 1.5pA/√Hz at 100kHz.
