National Semiconductor LMH6639 190MHz Rail-to-Rail Output Amplifier Datasheet

The LMH6639 is a 190MHz single supply operational amplifier using National's patented VIP10 process, with a rail-to-rail output drive capability of 110mA.

Brand: National Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 17
File format: PDF
File size: 631 KB
Published: 05 July, 2012
Updated: 30 September, 2023
MD5 checksum: 5709E931B386707AE4CCE3C09BF855AD
PDF: National Semiconductor LMH6639 190MHz Rail-to-Rail Output Amplifier Datasheet PDF

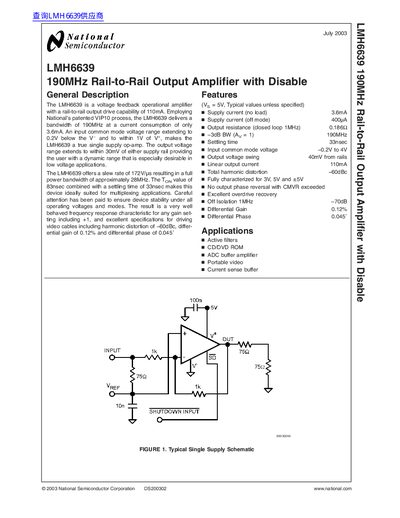

About this manual

The LMH6639 is a voltage feedback operational amplifier featuring a rail-to-rail output drive capability of 110mA. Utilizing National's patented VIP10 process, it delivers a bandwidth of 190MHz at a current consumption of only 3.6mA. The device is designed as a true single supply op-amp with an input common mode voltage range extending to 0.2V below the negative supply.

What's inside

General Description
Features
Applications
Absolute Maximum Ratings
Operating Ratings
Electrical Characteristics
Shutdown Mode

Specifications

Settling Time	33nsec
Input Offset Voltage	5mV

Frequently asked questions

What is the maximum output current capability of this amplifier?

The LMH6639 provides a rail-to-rail output drive capability of 110mA.

How much power does the device consume when it is enabled with no load?

The supply current for an enabled unit with no load is typically 3.6mA.

What is the typical bandwidth of this amplifier at a gain setting of +1?

At a gain of +1, the device delivers a bandwidth of 190MHz.
