The LMH6560 is a high-performance closed-loop buffer with a bandwidth of 680MHz and a slew rate of 3100V/µs. It can be used for high frequency signal distribution and processing.

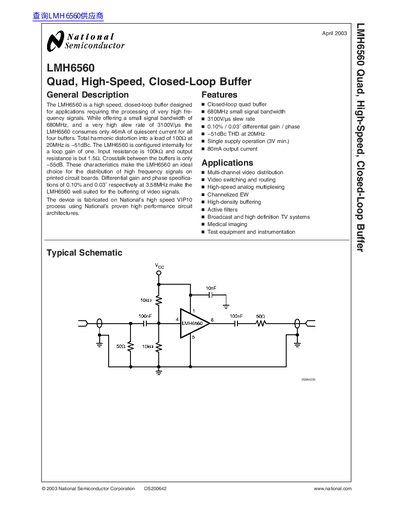

The LMH6560 is a high-speed, closed-loop buffer designed for processing very high frequency signals. It features a small signal bandwidth of 680MHz and a slew rate of 3100V/us while consuming only 46mA of quiescent current for all four buffers. The device is fabricated on National's high speed VIP10 process and is configured internally for a loop gain of one.
| Small Signal Bandwidth | 680 MHz |
|---|---|
| Slew Rate | 3100 V/us |
| Quiescent Current | 46 mA |
| Total Harmonic Distortion | -51 dBc |
| Input Resistance | 100 kQ |
| Output Resistance | 1.5 Q |
| Amplifier Crosstalk | -55 dB |
| Differential Gain | 0.10% |
| Differential Phase | 0.03 deg |
| Supply Voltage | 3-10V |
The small signal bandwidth is 680MHz.
The device consumes 46mA of quiescent current for all four buffers.
The total harmonic distortion into a load of 100Q at 20MHz is -51dBc.
