LMH6618 is a 130 MHz, 1.25 mA RRIO operational amplifier with exceptional power-to-performance ratio, low power consumption, low noise and the ability to drive complex ADC and video loads.

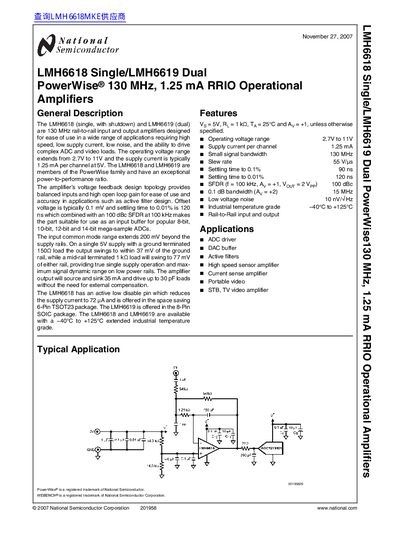

The LMH6618 (single) and LMH6619 (dual) are 130 MHz rail-to-rail input and output amplifiers designed for ease of use in applications requiring high speed, low supply current, low noise, and the ability to drive complex ADC and video loads. The operating voltage range extends from 2.7V to 11V, and the supply current is typically 1.25 mA per channel at 5V. These devices are members of the PowerWise family and feature an exceptional power-to-performance ratio.
| Small Signal Bandwidth | 130 MHz |
|---|---|
| Supply Current per channel | 1.25 mA |
| Slew rate | 55 V/us |
| Settling time to 0.1% | 90 ns |
| SFDR (f= 100 kHz) | 100 dBe |
| Low voltage noise | 10 nV/VHz |
| Industrial temperature grade | -40°C to +125°C |
The supply current is typically 1.25 mA per channel when operating at a 5V supply.
On a single 5V supply with a ground terminated 150Ω load, the output swings to within 37 mV of the ground rail.
