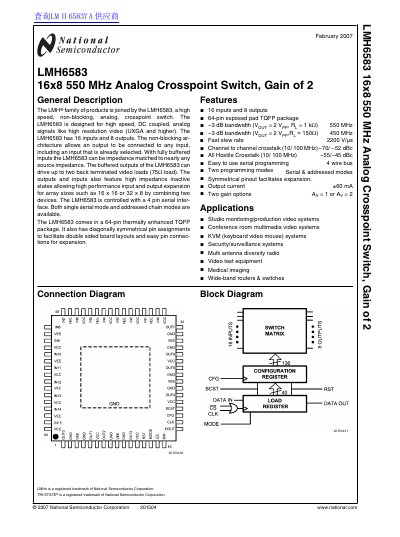

LMH6583 is a high performance 16x8 550MHz analog crosspoint switch with fully buffered inputs and outputs.
The LMH6583 is a high-speed, DC coupled, analog crosspoint switch designed for high-resolution video signals like UXGA and higher. It features 16 inputs and 8 outputs with a non-blocking architecture, allowing any output to be connected to any input, including one already selected. The device includes fully buffered inputs for impedance matching and buffered outputs capable of driving up to two back-terminated video loads.
| -3 dB Bandwidth (Vout = 2 Vpp, RL = 1 kΩ) | 550 MHz |
|---|---|
| -3 dB Bandwidth (Vout = 2 Vpp, RL = 150 Ω) | 450 MHz |
| Number of Inputs | 16 |
| Number of Outputs | 8 |
| Gain Options | 1 or 2 |
| Package Type | 64-pin exposed pad TQFP |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Range | +3V to +5.5V |
| Output Current (Sourcing) | +60 mA |
The LMH6583 has a -3 dB bandwidth of 550 MHz when Vout is 2 Vpp and RL is 1 kΩ.
The LMH6583 is a 16x8 switch with 16 inputs and 8 outputs.
The device offers two gain options: Ay=1 or Ay=2.
The operating temperature range is from -40°C to +85°C.
