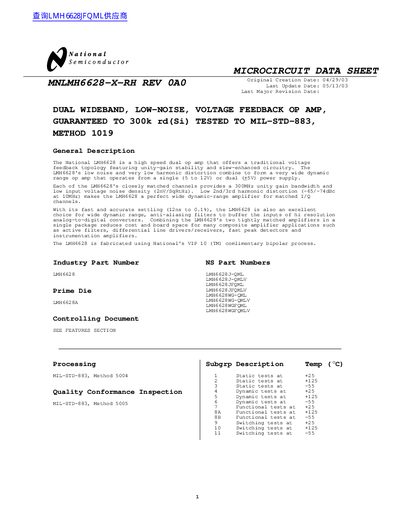

The LMH6628 is a high-speed dual op amp from National that offers a traditional voltage feedback topology featuring unity-gain stability and slew-enhanced circuitry. The LMH6628's low noise and very low harmonic distortion combine to form a very wide dynamic range op amp that operates from a single (5 to 12V) or dual (+5V) power supply. Each of the LMH6628's closely matched channels provides a 300MHz unity gain bandwidth and low input voltage noise density (2nV/SqRtHz). Low 2nd/3rd harmonic distortion (-65/-74dBc at 10MHz) makes the LMH6628 a perfect wide dynamic-range amplifier for matched I/Q channels. With its fast and accurate settling (12ns to 0.1%), the LMH6628 is also an excellent choice for wide dynamic range, anti-aliasing filters to buffer the inputs of hi resolution analog-to-digital converters. Combining the LMH6628's two tightly matched amplifiers in a single package reduces cost and board space for many composite amplifier applications such as active filters, differential line drivers/receivers, fast peak detectors and instrumentation amplifiers. The LMH6628 is fabricated using National's VIP 10 (TM) comlimentary bipolar process.
The National Semiconductor LMH6628 is a high-speed dual operational amplifier featuring a traditional voltage feedback topology with unity-gain stability. It utilizes slew-enhanced circuitry to provide a wide dynamic range, operating from a single 5V to 12V supply or a dual +5V supply. The device is fabricated using National's VIP 10 complementary bipolar process and is tested to MIL-STD-883, Method 1019.
| Unity-gain bandwidth | 300 MHz |
|---|---|
| Input voltage noise density | 2.0nV/SqRtHz |
| Harmonic distortion (10MHz) | -65/-74dBe |
| Settling time | 12ns to 0.1% |
| Output current | +85mA |
| Small Signal Bandwidth | 50 MHz |
The recommended operating supply voltage is +2.5V to +6.0V.
The device operates from -55°C to +125°C.
Yes, it is tested to MIL-STD-883, Method 1019.
