philips PBSS8110X 100 V 1 A NPN low VCEsat (BISS) transistor handbook

PBSS8110X is a low Vcesat NPN BISS transistor from Philips Semiconductors. It is packaged in a SOT89 (SC-62/TO-243) and has low collector-emitter saturation voltage Vcesat, high collector current capability IC and ICM, high efficiency and other features. It is mainly used in automotive 42V power, telecom infrastructure, industrial and other fields. It can also be used for drivers in low voltage applications (such as lamps and LEDs), inductive load drivers (such as relays, buzzers and motors) and DC-DC converters.

Brand
Philips
File format
PDF
Published
03 July, 2012
Updated
30 September, 2023
MD5 checksum
31171703826145379D5DC1B6769CFF33
PDF

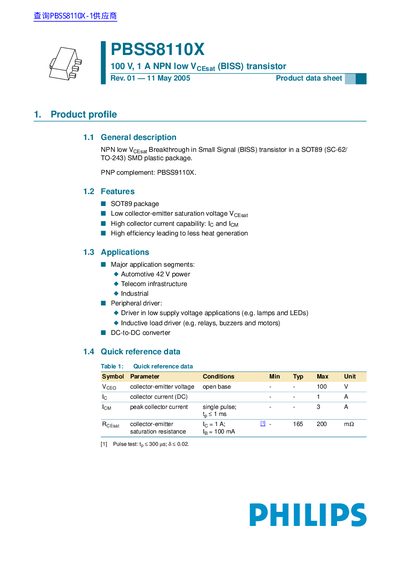

philips PBSS8110X 100 V 1 A NPN low VCEsat (BISS) transistor handbook PDF
Download PDF
