PBSS5140S is a low voltage saturation voltage PNP transistor from Philips Semiconductors with high power dissipation (830 mW), ultra low collector-emitter saturation voltage, 1A continuous current, high current switching etc.

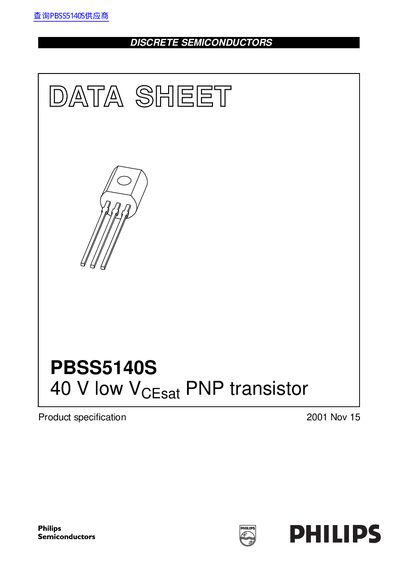

This document is a product specification datasheet for the Philips PBSS5140S, a 40 V low VCEsat PNP transistor housed in a SOT54 plastic package. Key features include high power dissipation of 830 mW, ultra-low collector-emitter saturation voltage, and a continuous current rating of 1 A. The device is designed for high-current switching applications and offers improved reliability due to reduced heat generation.
The datasheet provides detailed electrical characteristics, including collector-emitter voltage limits, current gain, and transition frequency. It also includes thermal characteristics, package outline dimensions, and application examples such as medium power switching, linear regulators, and LCD back-lighting circuits. The document notes that the NPN complement is the PBSS41408.
| Collector-Emitter Voltage (VCEO) | -40 V |
|---|---|
| Storage Temperature (Tstg) | -65 to +150 °C |
| Junction Temperature (Tj) | 150 °C |
| Package Type | SOT54 |
The NPN complement is the PBSS41408.
It is suitable for medium power switching, muting, linear regulators, DC/DC converters, and LCD back-lighting circuits.
The maximum collector-emitter voltage (VCEO) is -40 V.
