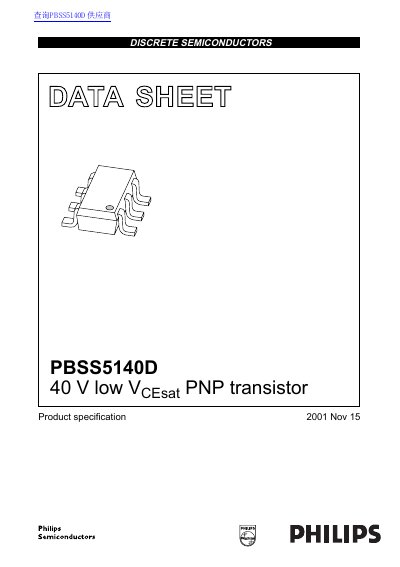

This document describes the features and applications of the PBSS5140D 40V low VCEsat PNP transistor.
The document is a product specification for the Philips PBSS5140D, a PNP transistor designed for general-purpose switching and muting applications. It features a low collector-emitter saturation voltage and is housed in an SC-74 (SOT457) plastic package. Key applications include supply line switching circuits and battery-driven equipment such as mobile phones and video cameras.
The datasheet details electrical characteristics, including limiting values, thermal characteristics, and typical performance curves for current gain, saturation voltage, and transition frequency. It also provides package outline dimensions and includes standard legal disclaimers regarding life support applications and the right to make changes without notice.
| Collector Current (DC) (IC) | -1 A |
|---|---|
| Peak Collector Current (ICM) | -2 A |
| Total Power Dissipation (PTOT) | 460 mW |
| Operating Ambient Temperature (Tamb) | -65 to +150 °C |
| Equivalent On-Resistance (REsat) | < 500 mΩ |
The maximum DC collector current is -1 A.
The maximum DC collector current is 1 A.
The maximum total power dissipation is 460 mW.
The maximum collector-emitter saturation voltage is 500 mV.
