Philips PBSS4240V 40 V Low VCEsat NPN Transistor Data Sheet

Q: What are the main applications of the PBSS4240V?

It is used in power management (DC-DC converters, battery chargers) and as a peripheral driver for lamps, LEDs, relays, and motors.

Q: What is the maximum collector current?

The maximum DC collector current is 2 A, with a peak collector current of 2 A.

Q: What is the equivalent on-resistance?

The equivalent on-resistance is less than 190 mΩ.

PBSS4240V is a low VCEsat and high current capability NPN transistor suitable for power management and peripheral driver applications.

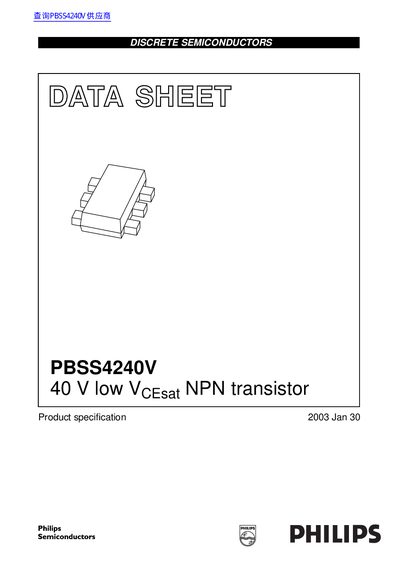

Philips PBSS4240V 40 V Low VCEsat NPN Transistor Data Sheet - cover page

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 70 KB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: 4EC5908DCB23EBDD9D33530BD5AF7A5D
PDF: Philips PBSS4240V 40 V Low VCEsat NPN Transistor Data Sheet PDF

About this manual

This document is a product specification datasheet for the Philips PBSS4240V, an NPN transistor designed for power management and peripheral driver applications. Key features include low collector-emitter saturation voltage and high collector current capability.

What's inside

Features
Applications
Description
Quick Reference Data
Pinning
Limiting Values
Thermal Characteristics
Characteristics
Package Outline
Data Sheet Status

Specifications

Collector-Emitter Voltage	40 V
Collector Current (DC)	2 A
Peak Collector Current	2 A
Equivalent On-Resistance	<190 mΩ
Package Type	SOT666
