PBSS4520X is a NPN low Vcesat (BISS) transistor produced by Philips Semiconductors. Its features are high hFE and low Vcesat, maximum current of 5A, high efficiency and low heat generation.

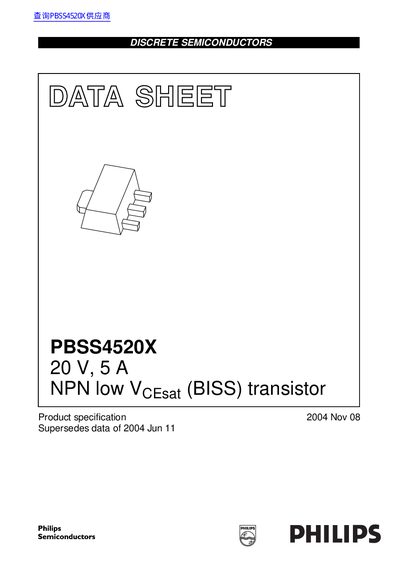

The document is a product specification datasheet for the Philips PBSS4520X, an NPN low Vcesat BISS transistor. It is designed for medium power peripheral drivers, strobe flash units, inverter applications, and power switches for LAN and ADSL systems. The device features high collector current capability up to 5A DC and 10A peak.
| Collector-emitter voltage | 20 V |
|---|---|
| Collector current (DC) | 5 A |
| Peak collector current | 10 A |
| Equivalent on-resistance | 44 mΩ |
The maximum DC collector current is 5 A, with a peak collector current of 10 A.
The maximum DC collector current is rated at 5 A.
It is used in medium power peripheral drivers such as fans and motors, strobe flash units for DSC and mobile phones, and battery chargers.
