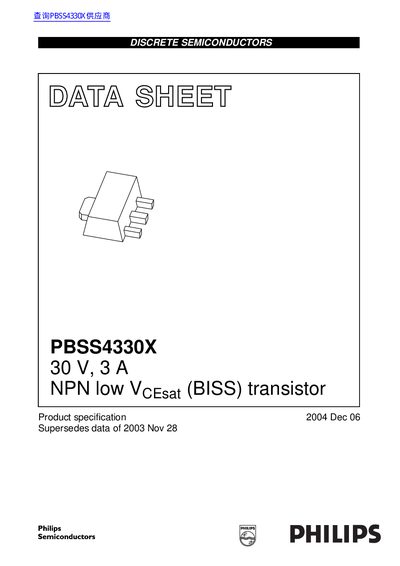

PBSS4330X is a 30V, 3A NPN low VCEsat (BISS) transistor. It features low collector-emitter saturation voltage, high collector current capability, higher efficiency, and reduced printed-circuit board requirements.
The Philips PBSS4330X is an NPN low VCEsat transistor housed in a SOT89 (SC-62) plastic package. It features a high collector current capability of 3A DC and 5A peak, designed for applications requiring low collector-emitter saturation voltage and reduced printed-circuit board requirements. Key applications include DC/DC converters, supply line switching, battery chargers, LCD backlighting, and peripheral drivers for low supply voltage environments.
| Collector-Emitter Voltage (VCEO) | 30 V |
|---|---|
| Collector Current (DC) | 3 A |
| Base Current (DC) | 0.5 A |
| Total Power Dissipation (Tamb 25°C) | 550 mW |
| Storage Temperature | -65 to +150 °C |
| Junction Temperature | 150 °C |
| Collector-Emitter Saturation Voltage (VCEsat) | 300 mV |
| Equivalent On-Resistance | 100 mΩ |
| Transition Frequency (fT) | 100 MHz |
The PBSS4330X is available in a SOT89 (SC-62) plastic surface mounted package.
The device supports a DC collector current of 3A and a peak collector current of 5A.
