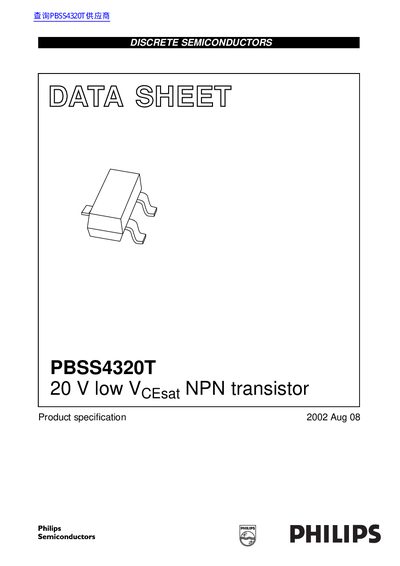

PBSS4320T is a 20V low VCEsat NPN transistor with features such as low collector-emitter saturation voltage VCEsat and corresponding low RCEsat, high collector current capability, high collector current gain, and improved efficiency due to reduced heat generation.
The Philips PBSS4320T is an NPN low collector-emitter saturation voltage (Vcesat) transistor designed for power management applications. It features high collector current capability and gain, making it suitable for use in DC/DC converters, supply line switching, battery chargers, and linear voltage regulation with low voltage drop-out.
| Collector-emitter voltage (VCEO) | 20 V |
|---|---|
| Collector current (DC) (IC) | 2 A |
| Equivalent on-resistance (Rcesat) | 105 mΩ |
| Package type | SOT23 |
The maximum DC collector current is 2 A.
The maximum collector-emitter voltage is 20 V.
