PBSS4240Y is a high-performance 40V low Vcesat NPN transistor. It features low collector-emitter saturation voltage, high current capability and enhanced performance. It is widely used in supply line switching circuits, battery management applications, DC/DC converter applications, strobe flash units and heavy duty battery powered equipment (motor and lamp drivers).

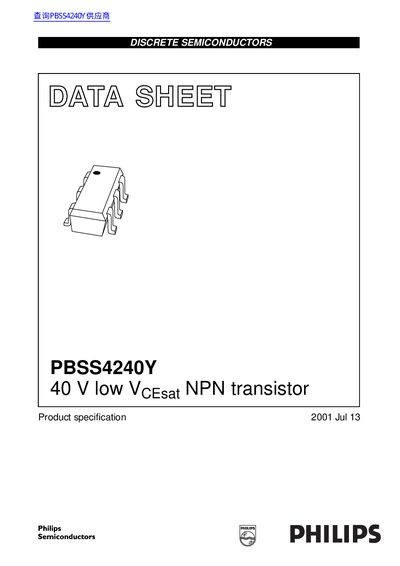

This document is a product specification datasheet for the Philips PBSS4240Y, an NPN transistor designed with a low collector-emitter saturation voltage (VCEsat). The device is housed in a SOT363 (SC-88) plastic surface-mounted package and features six leads. It is intended for applications such as strobe flash units, supply line switching circuits, battery management, and DC/DC converters.
| Collector-Emitter Voltage (VCEO) | 40 V |
|---|---|
| Peak Collector Current (ICM) | 3 A |
| Equivalent On-Resistance (Rcesat) | <200 mΩ |
| Package Type | SOT363 (SC-88) |
| DC Current Gain (hFE) Min | 300 |
| Collector-Emitter Saturation Voltage (VCEsat) Max | 240 mV |
The PNP complement is the PBSS5240Y.
The storage temperature range is from -65 °C to +150 °C.
