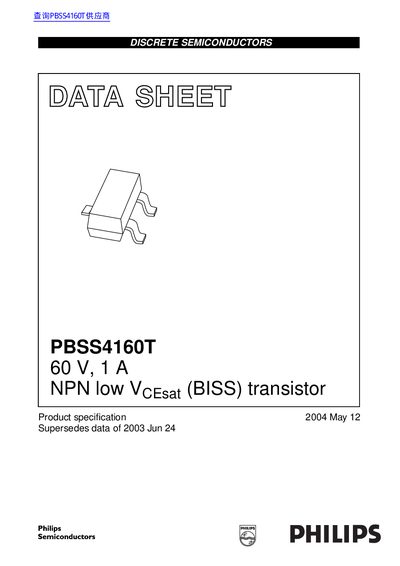

This document describes the features and characteristics of the PBSS4160T, which is a 60V, 1A NPN low VCEsat (BISS) transistor.
The Philips PBSS4160T is an NPN low VCEsat (BISS) transistor designed for high efficiency and reduced heat generation. It serves as a cost-effective replacement for medium power transistors like the BCP55 and BCX55. The device is available in a plastic surface-mounted SOT23 package with three leads.
| Collector-emitter voltage | 60 V |
|---|---|
| Collector current (DC) | 1 A |
| Peak collector current | 2 A |
| Equivalent on-resistance | 250 mΩ |
| Package type | SOT23 |
The PNP complement is the PBSS5160T.
The major application segments are Automotive 42 V power, Telecom infrastructure, and Industrial.
