PBSS4240DPN is a low VCEsat NPN/PNP transistor produced by Philips Semiconductors. It has the characteristics of low collector-emitter saturation voltage, high collector current capability, high collector current gain, high efficiency and so on. It is widely used in power management and peripheral driver applications.

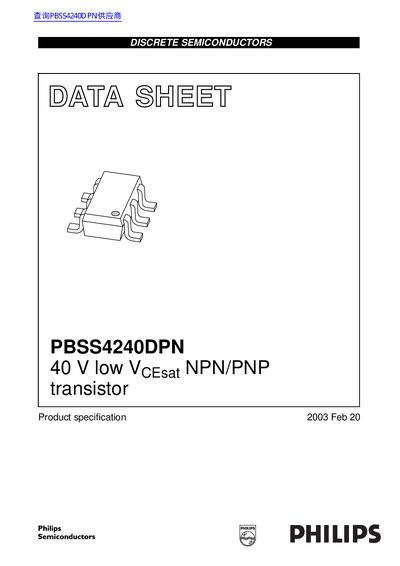

The document is a product specification datasheet for the Philips Semiconductors PBSS4240DPN. This device consists of an NPN/PNP low VCEsat transistor pair housed in a SOT457 (SC-74) plastic package.
Key features include high collector current capability, high current gain at high currents, and reduced heat generation due to efficiency. The transistors are designed for applications such as power management (MOSFET drivers, dual supply line switching) and peripheral driving (motor drivers).
| Collector Current (DC) (ICO) | 1.35 A / -1.1 A |
|---|---|
| Package Type | SOT457 (SC-74) |
