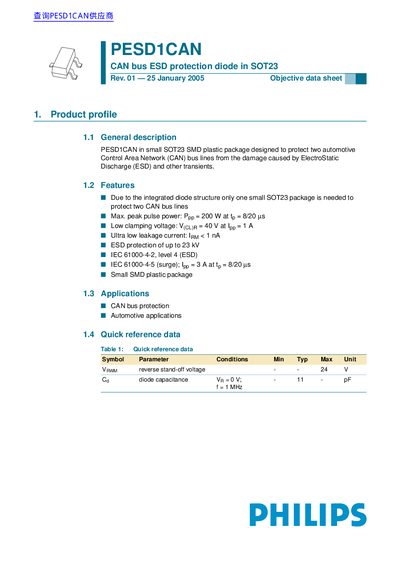

PESD1CAN is a CAN bus ESD protection diode from Philips. It is in SOT23 package and has low clamping voltage, low leakage current, high ESD protection and so on.
The Philips PESD1CAN is a compact SOT23 surface-mounted device designed to protect two automotive Control Area Network (CAN) bus lines from damage caused by Electrostatic Discharge (ESD) and other transients. The component features an integrated diode structure that allows a single small package to safeguard both bus lines effectively.
| Package type | SOT23 |
|---|---|
| Max peak pulse power | 200 W |
| Low clamping voltage | 40 V |
| ESD protection capability | 23 kV |
| Reverse stand-off voltage | 24 V |
| Diode capacitance | 11 pF |
It is designed for the protection of two automotive CAN bus lines from ESD and surge pulses.
The device can withstand an electrostatic discharge of up to 23 kV for contact discharge.
