PESDxS2UT series is a uni-directional double ESD protection diodes in SOT23 package, with max. peak pulse power: Ppp = 330 W at tp = 8/20 µs, low clamping voltage: V(CL)R = 20 V at Ipp = 18 A, ultra-low reverse leakage current: IRM < 700 nA, ESD protection > 23 kV, compliant with IEC61000-4-2 and IEC61000-4-5 standards, suitable for computers and peripherals, communication systems, audio and video equipment, high speed data lines and parallel ports.

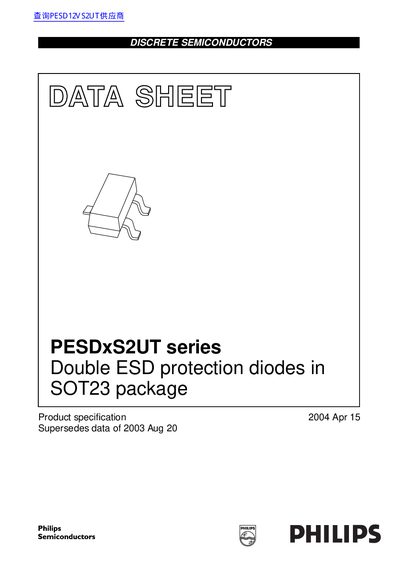

The document describes the Philips PESDxS2UT series, which consists of uni-directional double ESD protection diodes designed to protect up to two transmission or data lines from electrostatic discharge damage. These components are housed in a SOT23 plastic package and are intended for use in computers, peripherals, communication systems, and high-speed data lines.
| Number of protected lines | 2 |
|---|---|
| Max. peak pulse power | 330 W at tp = 8/20 ps |
| Low clamping voltage | 20 V at Ipp = 18 A |
| Ultra-low reverse leakage current | IR < 700 nA |
| ESD protection capability | > 23 kV |
| Package type | SOT23 |
| Junction temperature | -65 +150 °C |
They are designed for computers and peripherals, communication systems, audio and video equipment, and high speed data lines.
The peak pulse power is 330 W for an 8/20 us pulse.
The reverse stand-off voltage is 12 V.
