ZXMN10A07F is a new generation of TRENCH MOSFETs from Zetex. It combines the benefits of low on-resistance with fast switching speed. This makes it ideal for high efficiency, low voltage, power management applications.

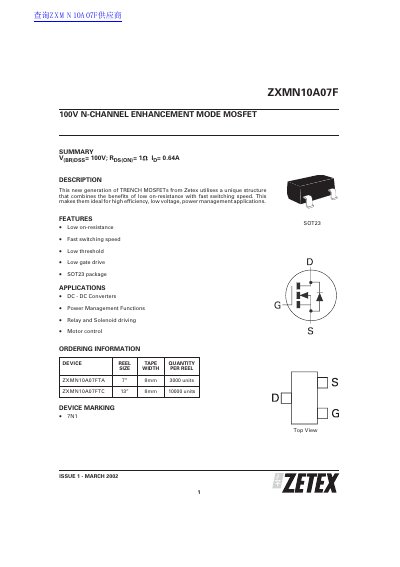

The ZXMN10A07F is a 100V N-Channel Enhancement Mode MOSFET available in an SOT23 package. It features low on-resistance and fast switching speed, making it suitable for high efficiency power management applications such as DC-DC converters, relay driving, and motor control.
The document details the device's absolute maximum ratings, including a drain-source voltage of 100V and continuous drain currents up to 0.64A depending on temperature conditions. It also lists static electrical characteristics like threshold voltage and output capacitance, as well as dynamic parameters such as turn-on delay time and total gate charge.
| Pulsed Drain Current (I DM) | 2.5 A |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
| Total Gate Charge (Q g) | 2.9 nC |
It is ideal for DC-DC converters, power management functions, relay and solenoid driving, and motor control.
The operating and storage temperature range extends from -55°C to +150°C.
