The ZXMN2A02X8 is a N-channel enhancement mode MOSFET from Zetex that offers the benefits of low on-resistance and fast switching speed. This makes it ideal for high efficiency, low voltage, power management applications.

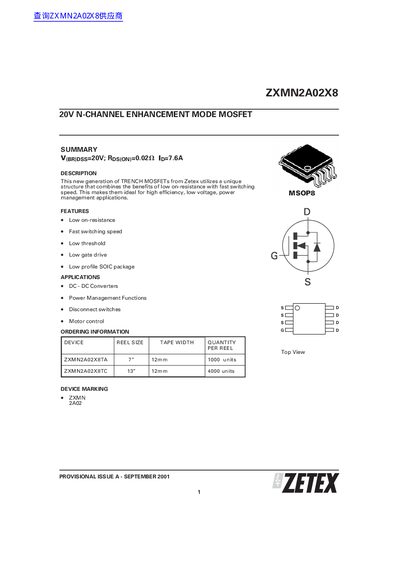

The document describes the ZXMN2A02X8, a new generation of TRENCH MOSFETs from Zetex designed for high efficiency and low voltage power management applications. Key features include low on-resistance, fast switching speed, and availability in a low profile SOIC package.
| Drain-Source Voltage (Vipripss) | 20 V |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
The repetitive rating for pulsed drain current is 27 A under specific conditions.
The part can dissipate up to 1.8 W when mounted on a PCB measured in still air conditions.
The device operates and stores safely within a temperature range of -55 to +150 °C.
