This is a document about the new generation of TRENCH MOSFETs from Zetex. The document describes the features of these MOSFETs, including low on-resistance, fast switching speed, low threshold, low gate drive, and low profile package. The product is suitable for high efficiency, low voltage power management applications.

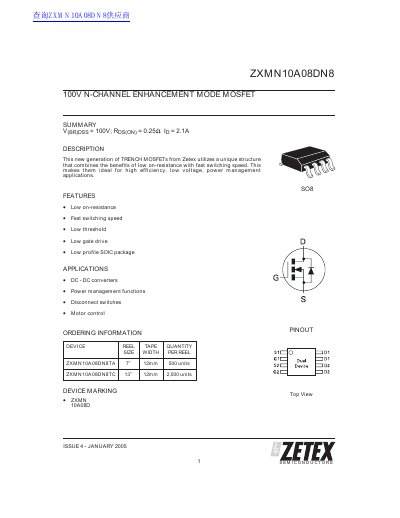

The Zetex ZXMN10A08DN8 is a new generation TRENCH MOSFET designed for high efficiency and low voltage power management applications. It features a unique structure combining low on-resistance with fast switching speed, making it suitable for DC-DC converters, power management functions, disconnect switches, and motor control. The device is available in a low profile SOIC package.
| Drain-source voltage | 100 V |
|---|---|
| Pulsed drain current | 9 A |
| Operating and storage temperature range | -55 to +150 °C |
| Static drain-source on-state resistance | 0.25 Ohms |
| Package type | SO8 |
The device is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The maximum junction temperature is +150 °C.
