ZXMN3A04DN8 is a new generation of TRENCH MOSFETs from Zetex, which combines the benefits of low on-resistance with fast switching speed. It is ideal for high efficiency, low voltage, power management applications.

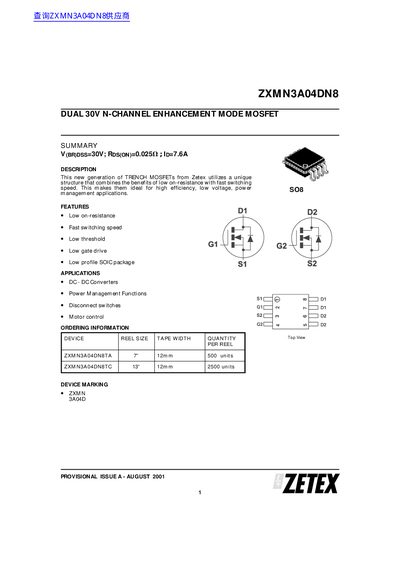

This document is a provisional datasheet for the ZXMN3A04DN8, a dual 30V N-channel enhancement mode MOSFET manufactured by Zetex. The device utilizes a TRENCH MOSFET structure designed for high efficiency and low voltage power management applications. Key features include low on-resistance, fast switching speed, and a low profile SOIC package.
| Drain-Source Voltage | 30 V |
|---|---|
| On-Resistance | 0.025 Ohms |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | Low profile SOIC |
It is suitable for DC-DC converters, power management, disconnect switches, and motor control.
The operating and storage temperature range is from -55 to +150 °C.
