This is a product description document about the new generation of TRENCH MOSFETs from Zetex. These products utilize a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage power management applications. The features of this product include low on-resistance, fast switching speed, low threshold, and low gate drive. It is suitable for applications such as DC-DC converters, power management functions, disconnect switches, and motor control.

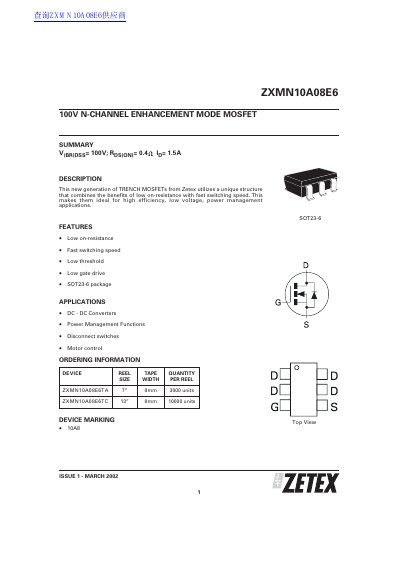

The ZXMN10A08E6 is a 100V N-Channel Enhancement Mode MOSFET manufactured by Zetex. It features a unique Trench structure designed to combine low on-resistance with fast switching speed, making it suitable for high-efficiency, low-voltage power management applications such as DC-DC converters and motor control. The device is available in a SOT23-6 package.
| Drain-Source Voltage | 100 V |
|---|---|
| Pulsed Drain Current | 5.3 A |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
The maximum junction temperature is 150 °C.
It is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
