This document describes a new generation of TRENCH MOSFETs from Zetex, which combines the benefits of low on-resistance with fast switching speed. They are ideal for high efficiency, low voltage power management applications.

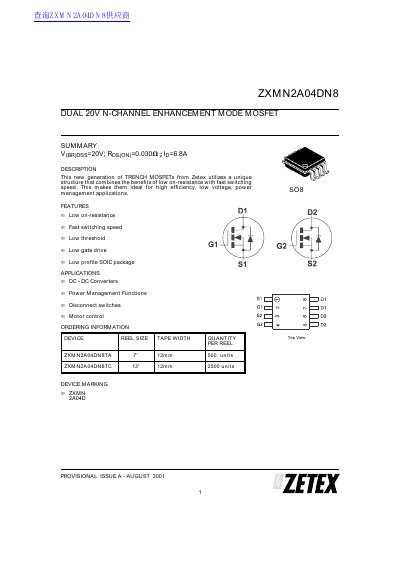

This document describes the Zetex ZXMN2A04DN8, a new generation of TRENCH MOSFETs designed for high efficiency power management applications. The device features low on-resistance and fast switching speed, available in a low profile SOIC package.
The datasheet provides absolute maximum ratings, electrical characteristics at 25°C, thermal resistance values, and ordering information for different reel sizes. It also includes package dimensions and notes regarding the manufacturer's right to alter specifications without notice.
| Drain-Source Voltage (V(BR)DSS) | 20 V |
|---|---|
| Junction-to-Ambient Thermal Resistance (RθJA) | 60 °C/W |
| Static Drain-Source On-State Resistance (RDS(on)) | 0.030 Ω |
The device is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The device comes in a low profile SOIC package.
