This document describes the features and characteristics of the new generation of TRENCH MOSFETs from Zetex, which combine the benefits of low on-resistance with fast switching speed. They are ideal for high efficiency, low voltage power management applications.

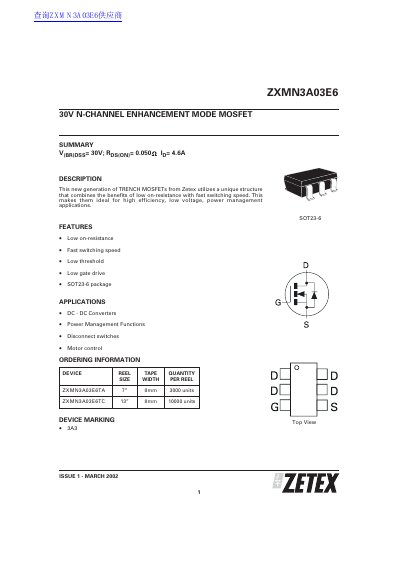

The ZXMN3A03E6 is a new generation TRENCH MOSFET from Zetex designed for high efficiency, low voltage power management applications. It features low on-resistance, fast switching speed, and a low threshold voltage, making it suitable for DC-DC converters, power management functions, disconnect switches, and motor control. The device is available in a SOT23-6 package.
| Drain-Source Voltage | 30 V |
|---|---|
| Pulsed Drain Current | 17 A |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
It is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The maximum storage temperature is +150 °C.
The typical gate-source threshold voltage is 1V.
