The ZXMN2A01E6 is a 20V N-channel enhancement mode MOSFET that features low on-resistance and fast switching speed, making it ideal for high efficiency, low voltage, power management applications.

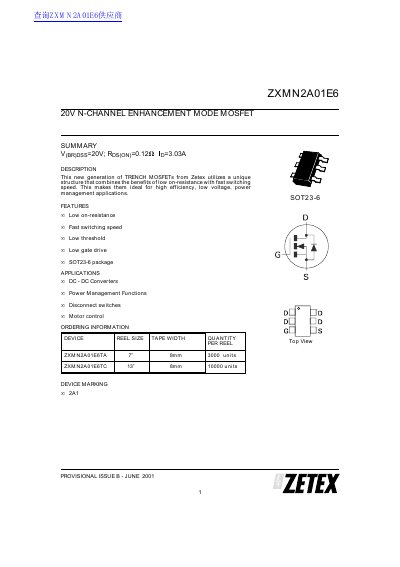

The ZXMN2A01E6 is a 20V N-Channel Enhancement Mode MOSFET designed for high efficiency and low voltage power management applications. It features a unique TRENCH structure that combines low on-resistance with fast switching speed, making it suitable for DC-DC converters, power management functions, disconnect switches, and motor control. The device is available in an SOT23-6 package. This manual is written in Chinese.
| Drain-Source Voltage | 20 V |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
| Gate-Source Threshold Voltage | 0.7 V |
The device is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The maximum operating and storage temperature range is from -55 to +150 °C.
