This PDF document introduces a new generation of Trench MOSFETs semiconductor products from Zetex, which utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. It is ideal for high efficiency, low voltage power management applications.

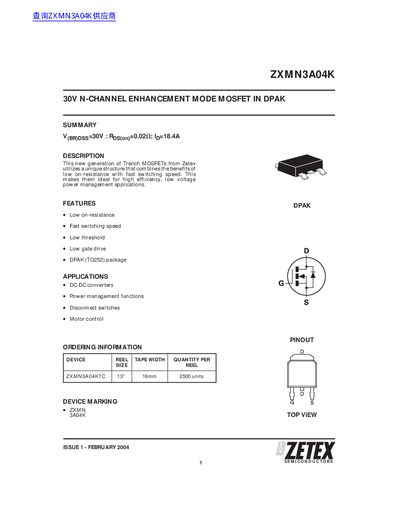

This document is a technical datasheet for the Zetex ZXMN3A04K, a Trench MOSFET designed for high efficiency power management applications. The device features a unique structure combining low on-resistance with fast switching speed, making it suitable for DC-DC converters and motor control circuits.
| Drain-source voltage | 30 V |
|---|---|
| Continuous drain current @ Ta=25°C | 18.4 A |
| On-resistance (RDS(on)) | 0.020 Ohm |
| Package type | DPAK (T0252) |
| Operating temperature range | -55 to +150 °C |
The maximum drain-source voltage is 30 V.
The continuous drain current is 18.4 A at 25°C.
