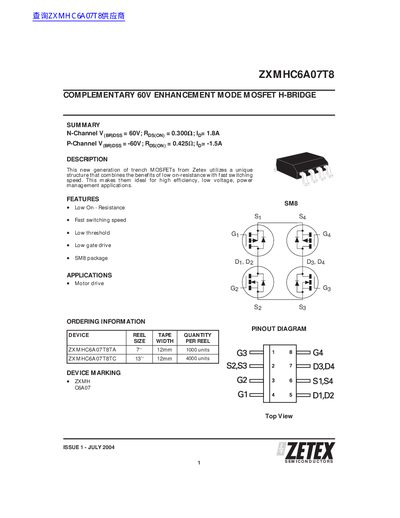

Zetex ZXMHC6A07T8 Complementary 60V Enhancement Mode MOSFET H-Bridge Datasheet

This document is the datasheet of ZXMHC6A07T8, which is a high efficiency low voltage power management application power switch device.

Brand: Zetex
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 282 KB
Published: 02 July, 2012
Updated: 30 September, 2023
Model: ZXMHC6A07T8
MD5 checksum: 35C2E7C29045E9F21419899F86A6140D
PDF: Zetex ZXMHC6A07T8 Complementary 60V Enhancement Mode MOSFET H-Bridge Datasheet PDF

About this manual

The ZXMHC6A07T8 is a complementary 60V enhancement mode MOSFET H-bridge from Zetex Semiconductors. It combines N-channel and P-channel trench MOSFETs to provide low on-resistance with fast switching speeds, making it ideal for high efficiency, low voltage power management applications such as motor drives. The device is available in the SM8 package.

What's inside

Summary
Description
Features
Applications
Ordering Information
Absolute Maximum Ratings
Typical Characteristics
Electrical Characteristics
Package Outline

Specifications

Drain-Source Voltage	60V
Package Type	SM8
Operating Temperature Range	-55 to +150 °C
On-Resistance (N-Channel)	0.300 Ohm
On-Resistance (P-Channel)	0.425 Ohm

Frequently asked questions

What is the primary application of the ZXMHC6A07T8?

It is ideal for high efficiency, low voltage power management applications, specifically motor drive.

What is the maximum operating temperature?

The operating and storage temperature range is from -55 to +150 °C.

What is the package type for this device?

The device is available in the SM8 package.
