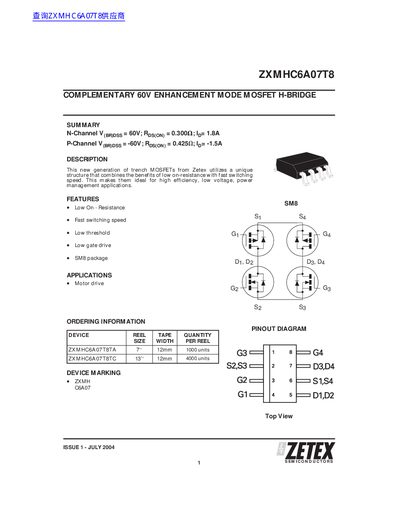

Zetex ZXMHC6A07T8 Complementary MOSFET H-Bridge Datasheet
The document describes the ZXMHC6A07T8, a new generation of trench MOSFETs from Zetex designed for high efficiency and low voltage power management. The device combines N-channel and P-channel MOSFETs in an H-bridge configuration within a single SM8 package.
Read onlineZetex ZXMHC6A07T8 specifications
| Drain-Source Voltage (N-Channel) | 60 V |
|---|---|
| On-State Resistance (Typical) | 9.3 mΩ |
| Package Type | SM8 |
| Operating Temperature Range | -55 to +150 °C |
Source: Zetex ZXMHC6A07T8 Complementary MOSFET H-Bridge Datasheet
All Zetex ZXMHC6A07T8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for this H-bridge?
The device is ideal for motor drive applications.
From: Zetex ZXMHC6A07T8 Complementary MOSFET H-Bridge Datasheet
What is the maximum power dissipation for this device at room temperature?
The N-Channel version can dissipate up to 13 W and the P-Channel version up to 17 W when the ambient temperature is 25°C.
From: Zetex ZXMHC6A07T8 Complementary MOSFET H-Bridge Datasheet
What is the primary application of the ZXMHC6A07T8?
It is ideal for high efficiency, low voltage power management applications, specifically motor drive.
From: Zetex ZXMHC6A07T8 Complementary 60V Enhancement Mode MOSFET H-Bridge Datasheet
What is the maximum operating temperature?
The operating and storage temperature range is from -55 to +150 °C.
From: Zetex ZXMHC6A07T8 Complementary 60V Enhancement Mode MOSFET H-Bridge Datasheet
What is the maximum operating voltage rating for this component?
This MOSFET operates with a drain-source voltage limit of 60 V.
From: ZETEX 60V N-CHANNEL MOSFET H-BRIDGE ZXMHC6A07T8 handbook
