The ZXMD65P03N8 is a new generation of high density MOSFETs from Zetex that utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.

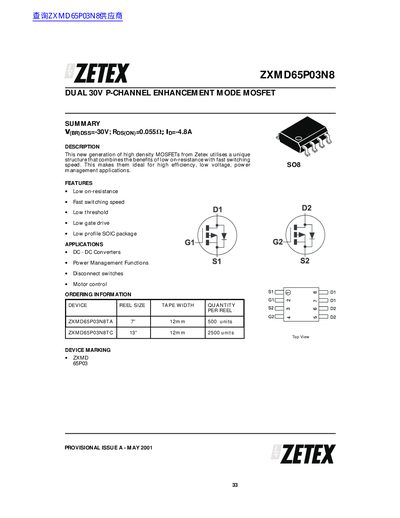

This document is a provisional datasheet for the Zetex ZXMD65P03N8, a dual 30V P-channel enhancement mode MOSFET. The device utilizes a unique structure to combine low on-resistance with fast switching speed, making it suitable for high-efficiency, low-voltage power management applications such as DC-DC converters, disconnect switches, and motor control. It is available in a low profile SOIC package.
| Drain-Source Voltage | -30 V |
|---|---|
| Static Drain-Source On-State Resistance | 0.055 Ohm |
| Input Capacitance | 930 pF |
| Turn-On Delay Time | 3.8 ns |
| Package Type | SOIC |
It is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The document lists thermal resistance values but does not explicitly state a maximum junction temperature limit in the provided text.
