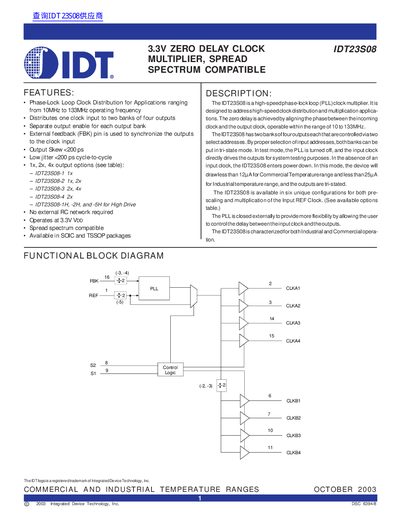

IDT23S08 is a 3.3V zero delay clock multiplier, which can achieve 1x, 2x, 4x clock outputs
The IDT23S08 is a high-speed phase-lock loop (PLL) clock multiplier designed for high-speed clock distribution and multiplication applications. It features zero delay by aligning the phase between the incoming clock and the output clock, operating within the range of 10 to 133MHz. The device distributes one clock input to two banks of four outputs, with separate output enable for each bank and an external feedback pin for synchronization.
| Operating Frequency Range | 10MHz to 133MHz |
|---|---|
| Supply Voltage | 3.3V |
| Output Skew | <200 ps |
| Low Jitter | <200 ps cycle-to-cycle |
| Package Types | SOIC and TSSOP |
| Power Down Current (Commercial) | <12 uA |
| Power Down Current (Industrial) | <25 uA |
The device operates from 10MHz to 133MHz.
Yes, the product is designed to be spread spectrum compatible.
The device offers 1x, 2x, and 4x output options depending on the specific configuration.
