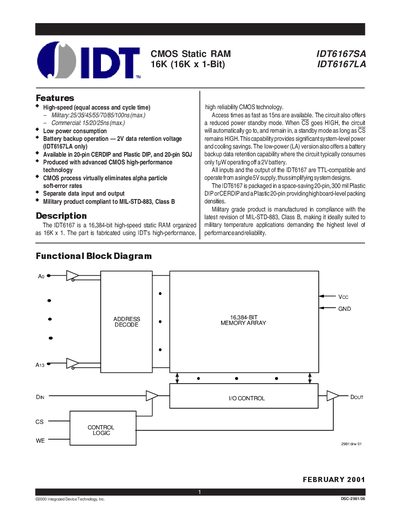

This document describes the features and characteristics of IDT6167, including high speed, low power consumption, battery backup operation, and various packaging options.
The IDT6167 series is a 16,384‑bit (16K × 1) CMOS static RAM offered in standard‑power (SA) and low‑power (LA) versions. Both variants operate from a single 5 V supply and feature TTL‑compatible I/O, high‑speed access times, and optional battery‑backup data retention for the LA part.
The device is qualified to MIL‑STD‑883, Class B for military use and is available in 20‑pin CERDIP, Plastic DIP and SOJ packages. Detailed electrical characteristics, timing diagrams, and ordering information are provided for both military (‑55 °C to +125 °C) and commercial (0 °C to +70 °C) temperature ranges.
| Memory size | 16 K × 1 bit (16 384 bits) |
|---|---|
| Access time (military) | 25 ns – 100 ns (max) |
| Access time (commercial) | 15 ns – 25 ns (max) |
| Operating temperature (commercial) | 0 °C to +70 °C |
| Package options | 20‑pin CERDIP, Plastic DIP, 20‑pin SOJ |
| Battery‑backup voltage (LA only) | 2 V data‑retention voltage |
Yes, the LA version includes a battery‑backup feature that retains data at a 2 V retention voltage with only about 1 pW power consumption.
For military parts the maximum access time ranges from 25 ns to 100 ns; for commercial parts it ranges from 15 ns to 25 ns.
