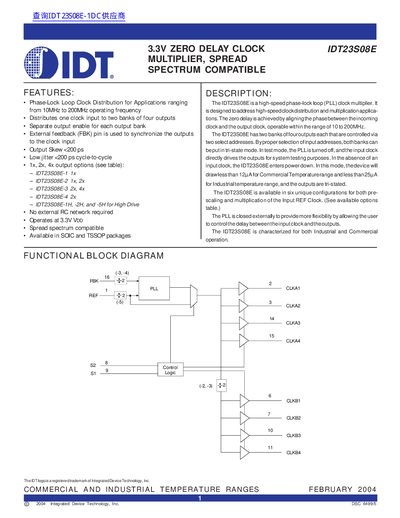

IDT IDT23S08E 3.3V Zero Delay Clock Multiplier Datasheet
The IDT23S08E is a high-speed phase-lock loop (PLL) clock multiplier designed for applications ranging from 10MHz to 200MHz. It distributes one clock input to two banks of four outputs, offering separate output enable for each bank and external feedback synchronization. The device achieves zero delay by aligning the phase between the incoming clock and the output clock, with output skew less than 200 ps and low jitter less than 200 ps cycle-to-cycle.
The IDT23S08E is available in six unique configurations for pre-scaling and multiplication, including options for 1x, 2x, and 4x output frequencies. It operates at 3.3V VDD and is characterized for both Commercial (0°C to +70°C) and Industrial (-40°C to +85°C) temperature ranges. The device is available in SOIC and TSSOP packages and is spread spectrum compatible.
IDT IDT23S08 specifications
| Operating Frequency Range | 10MHz to 200MHz |
|---|---|
| Supply Voltage | 3.3V |
| Output Skew | <200 ps |
| Jitter | <200 ps cycle-to-cycle |
| Output Configuration | Two banks of four outputs |
| Industrial Temperature Range | -40°C to +85°C |
| Package Types | SOIC and TSSOP |
Source: IDT IDT23S08E 3.3V Zero Delay Clock Multiplier Datasheet
All IDT IDT23S08 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the IDT23S08E?
The device operates with frequencies ranging from 10MHz to 200MHz.
From: IDT IDT23S08E 3.3V Zero Delay Clock Multiplier Datasheet
Is the IDT23S08E spread spectrum compatible?
Yes, the product is designed to be spread spectrum compatible.
From: IDT IDT23S08E 3.3V Zero Delay Clock Multiplier Datasheet
What is the maximum operating frequency of the IDT23S08T?
The device operates within the range of 10 to 133MHz.
From: IDT IDT23S08T 2.5V Zero Delay Clock Multiplier Datasheet
Does the IDT23S08T support spread spectrum?
Yes, the product is designed to be spread spectrum compatible.
From: IDT IDT23S08T 2.5V Zero Delay Clock Multiplier Datasheet
What is the operating frequency range of the IDT23S08?
The device operates from 10MHz to 133MHz.
From: IDT IDT23S08 3.3V Zero Delay Clock Multiplier Datasheet
Is the IDT23S08 spread spectrum compatible?
Yes, the product is designed to be spread spectrum compatible.
From: IDT IDT23S08 3.3V Zero Delay Clock Multiplier Datasheet
