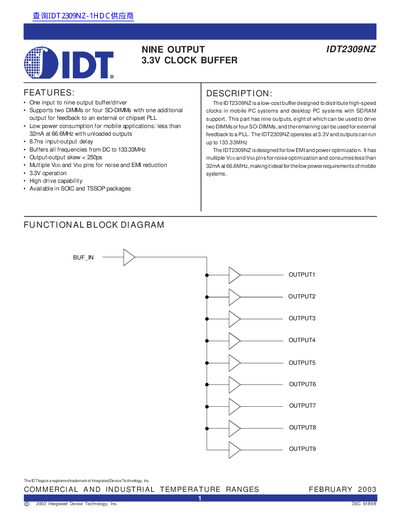

The IDT2309NZ is a low-cost buffer designed to distribute high-speed clocks in mobile PC systems and desktop PC systems with SDRAM support.
The IDT2309NZ is a low-power clock buffer/driver featuring one input and nine outputs. Eight of these outputs are designed to drive two DIMMs or four SO-DIMMs, while the ninth output provides feedback to an external or chipset PLL. The device operates at 3.3V with frequencies up to 133.33MHz.
| Outputs | Nine outputs (eight for SDRAM, one for feedback) |
|---|---|
| Supply Voltage | 3.3V |
| Operating Frequency | DC to 133.33MHz |
| Supply Current (Commercial) | < 2mA at 66.66MHz unloaded |
| Output-to-Output Skew (Commercial) | < 87ns typical, < 250ps max |
| Propagation Delay (Commercial) | < 87ns typical, < 1.5ns max |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
The device buffers all frequencies from DC to 133.33MHz.
It has nine outputs, with eight driving SDRAM and one for PLL feedback.
The IDT2309NZ operates at 3.3V.
