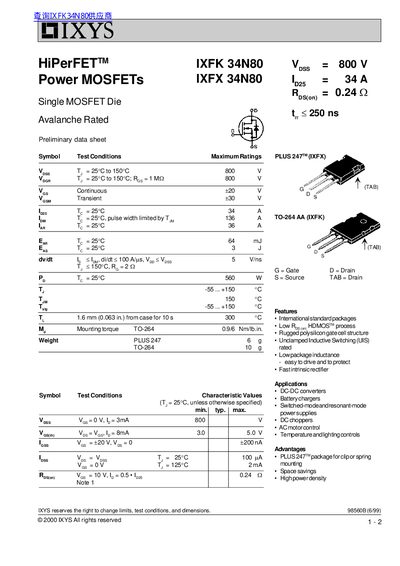

IXYS IXFK 34N80/IXFX 34N80 Preliminary Data Sheet

This document is the datasheet of the N-Channel Power MOSFET of IXFX brand PLUS 247TM.

Brand: IXYS
Category: Power Management
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 46 KB
Published: 15 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1496A65B2C5752905932DFD044E7C375
PDF: IXYS IXFK 34N80/IXFX 34N80 Preliminary Data Sheet PDF

About this manual

This document provides preliminary data for the IXYS IXFK 34N80 and IXFX 34N80 Power MOSFETs, which utilize the HiPerFET™ process. The devices are available in international standard packages, specifically the PLUS 247™ package for the IXFX model, designed for clip or spring mounting.

What's inside

Maximum Ratings
Electrical Characteristics
Source-Drain Diode
PLUS 247 Outline
TO-264 Outline
Features
Applications

Specifications

Drain-Source Voltage	800 V
Continuous Drain Current	34 A
Package Type	TO-264
Operating Temperature Range	-55 ... +150 °C

Frequently asked questions

What are the applications for these MOSFETs?

These devices are suitable for DC-DC converters, battery chargers, switched-mode power supplies, and AC motor control.

Is the IXFX 34N80 package designed for specific mounting?

Yes, the PLUS 247™ package for the IXFX model is designed for clip or spring mounting.
