IXGH 10 N100U1 is a combination of IGBT and Schottky diode produced by IXYS company. Its package is TO-247 AD, with a maximum voltage of 1000V and a maximum current of 20A. The typical on-state voltage drop is 3.5V.

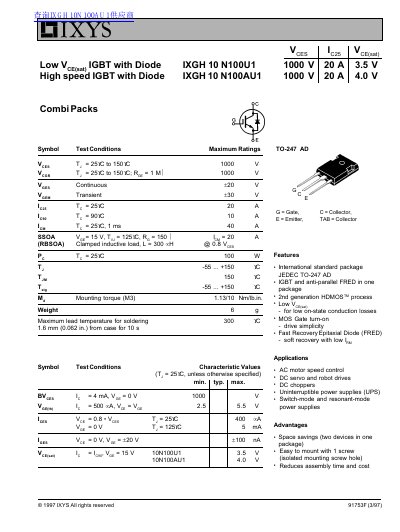

This document provides technical specifications for the IXGH 10N100U1 and IXGH 10N100AU1, which are high-speed IGBTs with an anti-parallel Fast Recovery Epitaxial Diode (FRED) in a single TO-247 AD package. The devices feature low on-state conduction losses and soft recovery characteristics.
| Continuous Collector Current (Ic) | 20 A |
|---|---|
| Operating Temperature Range (Tj) | -55 ... +150 °C |
The maximum mounting torque is 1.13 Nm or 10 lb.in.
