IXGH 17N100U1/17N100AU1 is a IGBT product produced by IXYS. Its characteristic is low VCE(sat), and it can be used for AC motor speed control, DC servo and robot drives, DC chopper and other applications.

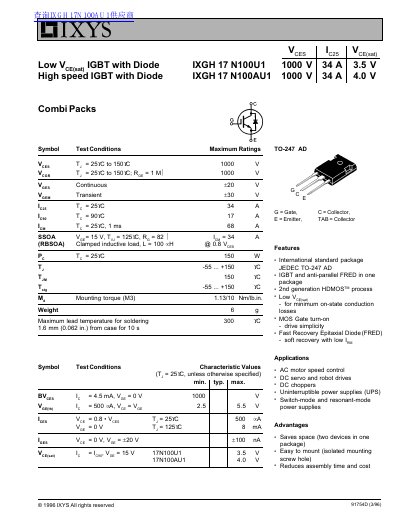

This document provides technical specifications for the IXGH 17N100U1 and IXGH 17N100AU1, which are low voltage high-speed IGBTs with an integrated anti-parallel FRED diode. These devices utilize a 2nd generation HDMOS process and are packaged in the JEDEC TO-247 AD standard case.
| Collector-Emitter Voltage (Vces) | 1000 V |
|---|---|
| Continuous Collector Current (Ic) | 34 A @ 25°C |
| Package Type | TO-247 AD |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
The maximum continuous collector current (Ic) at a junction temperature of 25°C is 34 A.
The maximum collector-emitter voltage (Vces) is rated at 1000 V.
