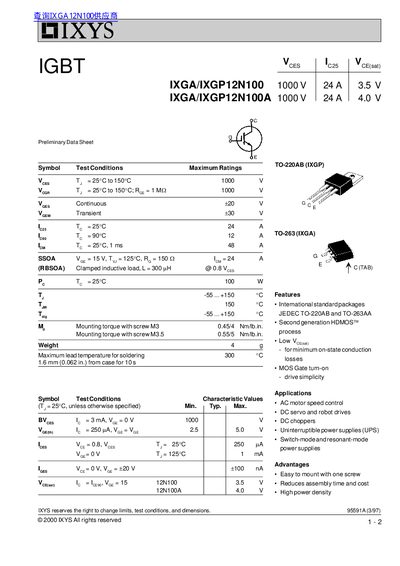

Preliminary datasheet for IXYS IXGA12N100 and IXGP12N100 IGBTs with electrical characteristics, maximum ratings, and package dimensions.
This datasheet provides the test conditions, electrical characteristics, and maximum ratings for the IXGA12N100 and IXGP12N100 insulated‑gate bipolar transistors (IGBTs). It includes typical on‑state voltage drops, collector current limits, switching energy values, and thermal resistance data.
The document also lists mechanical information such as package outlines for the TO‑263AA (IXGA) and TO‑220AB (IXGP) packages, recommended mounting torque, weight, and maximum lead temperature for soldering. Application notes mention use in AC motor speed control, DC servo/robot drives, UPS, and switch‑mode power supplies.
| Maximum collector‑emitter voltage (VCE) | 1000 V |
|---|---|
| Maximum collector current (IC) | 24 A |
| Thermal resistance junction‑to‑case (RthJC) | 1.25 K/W |
| Package type – IXGP | TO‑220AB |
| Recommended mounting torque (M3 screw) | 0.45 Nm |
| Recommended mounting torque (M3.5 screw) | 0.55 Nm |
