This datasheet provides information about IXGH 15N120C IXGT 15N120C, including package, features, applications, advantages, characteristics, test conditions, maximum ratings, maximum lead temperature, maximum tab temperature, etc.

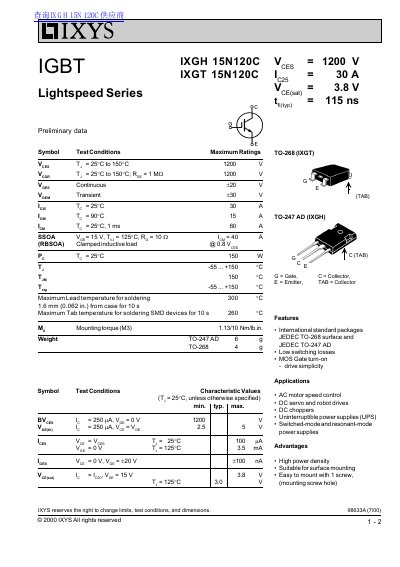

This document provides technical specifications for the IXYS Lightspeed Series IXGH15N120C (TO-247 AD) and IXGT15N120C (TO-268 AA) IGBTs. Key features include low switching losses, MOS gate turn-on drive simplicity, and suitability for surface mounting.
| Collector-Emitter Saturation Voltage (VCE(sat)) | 3.8 V |
|---|---|
| Turn-Off Time (tfi) | 115 ns |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
The maximum continuous collector current is 30 A.
The typical turn-on delay time is 25 ns.
