This document introduces IXYS' HiPerFASTTM IGBT product, including its features and characteristics. This IGBT has a rated voltage of 1200V, a rated current of 30A, low switching losses, and low saturation voltage. It is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switched-mode and resonant-mode power supplies.

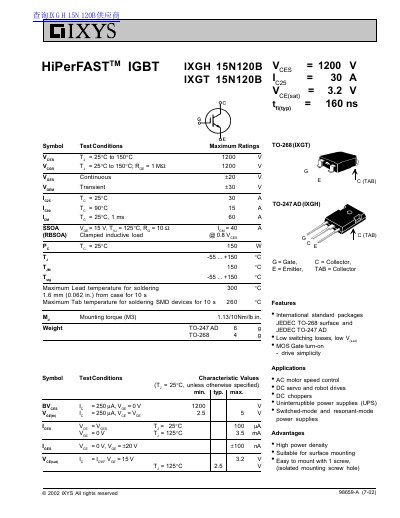

This document provides a comprehensive technical overview of the IXYS IXGH 15N120B and IXGT 15N120B HiPerFAST IGBTs. It specifies maximum ratings including a collector-emitter voltage of 1200V and a continuous collector current of 30A. The devices feature MOS gate turn-on technology and are available in TO-247 AD and TO-268 packages.
The maximum lead temperature for soldering is 300 °C for 1.6 mm from the case for 10 seconds.
