HiPerFASTTM IGBT is a medium frequency IGBT produced by IXYS. It has a new generation HDMOSTM process, international standard package JEDEC TO-247, high peak current handling capability, and is suitable for PFC circuits, AC motor speed control, DC servo and robot drives, switch-mode and resonant-mode power supplies.

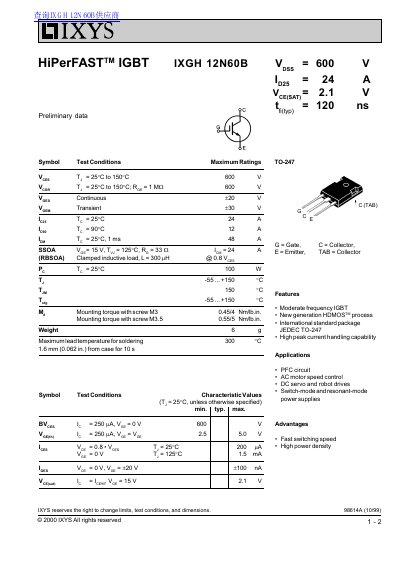

This document provides preliminary technical data for the IXYS IXGH12N60B, a moderate frequency IGBT utilizing the new generation HDMOS process. The device is housed in an international standard JEDEC TO-247 package and is designed for applications such as PFC circuits, AC motor speed control, DC servo drives, robot drives, and switch-mode power supplies.
| Package Type | TO-247 |
|---|---|
| Weight | 6 g |
The mounting torque with screw M3 is 0.45 Nm or 4 lb.in.
