This document describes the features and characteristics of IXYS products, including high current handling capability, simplicity of MOS gate turn-on drive, rugged NPT structure, etc. It is suitable for applications such as capacitor discharge and pulser circuits, AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies.

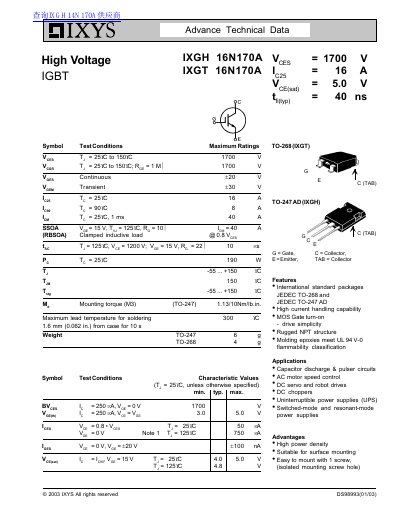

The document is a technical data sheet for the IXYS IXGH 16N170A and IXGT 16N170A High Voltage IGBTs. It details key features such as MOS gate turn-on capability, rugged NPT structure, and international standard packages (JEDEC TO-268 and TO-247 AD). The device is designed for high power density applications including capacitor discharge circuits, AC motor speed control, DC servo drives, UPS systems, and switch-mode power supplies. This manual is written in Chinese.
| Continuous Collector Current at 25°C (IC25) | 16 A |
|---|---|
| Collector Current at 90°C (IC90) | 8 A |
| Peak Collector Current (ICM) | 40 A |
| Operating Junction Temperature Range | -55 ... +150 °C |
| Thermal Resistance Case-to-Junction (TO-247) | 0.65 K/W |
| Total Gate Charge (Qg) | 65 nC |
The device is available in JEDEC TO-268 and JEDEC TO-247 AD international standard packages.
It is suitable for capacitor discharge circuits, AC motor speed control, DC servo drives, UPS, and switch-mode power supplies.
The maximum mounting torque (M3) for the TO-247 package is 1.13 Nm or 10 lb.in.
