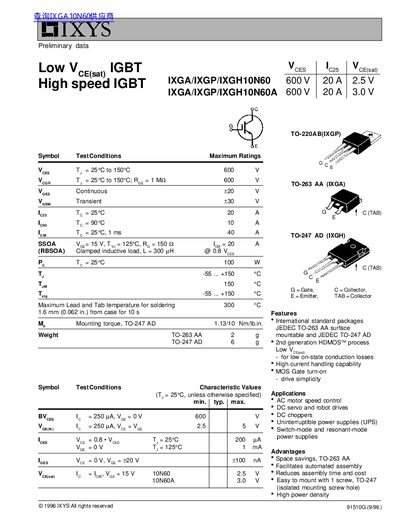

Preliminary datasheet for IXYS IXGA/IXGP/IXGH10N60 IGBT series, providing electrical characteristics, ratings, and package dimensions.
This datasheet presents the key electrical specifications for the IXYS IXGA/IXGP/IXGH10N60 IGBT devices, including test conditions, characteristic values, and maximum ratings such as 600 V collector‑emitter voltage and 20 A continuous current. Typical on‑state voltage drops are 2.5 V for the IXGA version and 3.0 V for the IXGH version.
The document also details the mechanical outlines and footprint dimensions for the TO‑263 AA and TO‑247 AD packages, with tables of minimum and maximum dimensions for each outline variant. Package drawings and mounting torque recommendations are included for design and assembly reference.
| Thermal Resistance Junction‑to‑Case (RthJC) | 1.25 K/W |
|---|
The junction‑to‑case thermal resistance is 1.25 K/W.
