The document describes the features and characteristics of IXYS products, including international standard package JEDEC TO-247 AD, integrated IGBT and anti-parallel FRED, 2nd generation HDMOSTM process, low VCE(sat), MOS gate turn-on, fast recovery epitaxial diode FRED, etc. It is suitable for AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switch-mode and resonant-mode power supplies.

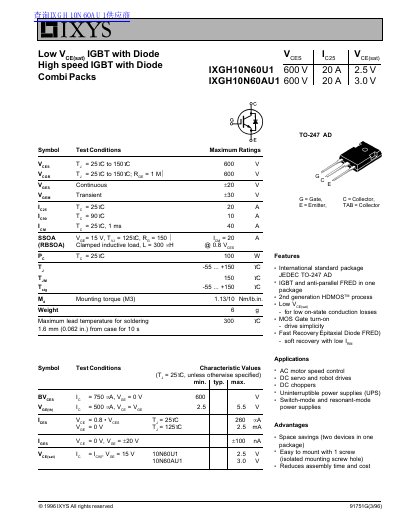

This document is a datasheet for the IXYS IXGH10N60U1 and IXGH10N60AU1 modules, which combine an IGBT and an anti-parallel FRED diode in a single TO-247 AD package. The devices are designed for applications requiring space savings and simplified mounting, such as AC motor speed control, DC servo drives, and UPS systems.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current (25°C) | 20 A |
| Package Type | JEDEC TO-247 AD |
| Mounting Torque | 1.13 Nm |
| Thermal Resistance Junction-to-Case | 1.25 K/W |
| Reverse Recovery Time (TJ=100°C) | 165 ns |
They are suitable for AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies (UPS).
The maximum junction temperature (TJM) is 150 °C.
The module uses the International standard package JEDEC TO-247 AD.
