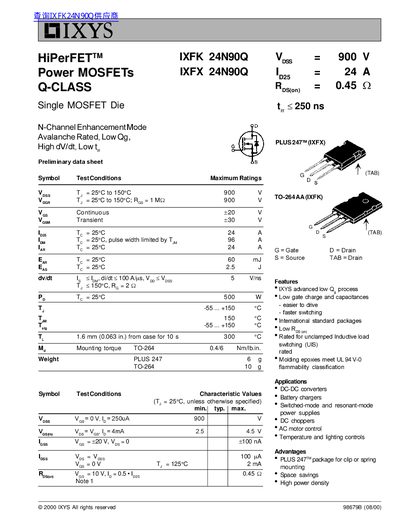

IXYS IXFK/IXFX 24N90Q Power MOSFET Preliminary Data Sheet

PLUS 247TM is a single MOSFET die with low Qg, low trr and high-frequency switching performance. Applications include DC-DC converters, battery chargers, and switched-mode power supplies.

Brand: IXYS
Category: Power Management
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 85 KB
Published: 15 June, 2012
Updated: 30 September, 2023
MD5 checksum: D6511682F210A7C8493B6A69F9FA8B1C
PDF: IXYS IXFK/IXFX 24N90Q Power MOSFET Preliminary Data Sheet PDF

About this manual

This document provides preliminary technical specifications for the IXYS IXFK 24N90Q and IXFX 24N90Q, which are single die N-channel enhancement mode power MOSFETs. These devices feature a low gate charge process designed for easier driving and faster switching speeds.

What's inside

Maximum Ratings
Electrical Characteristics
Package Outline Dimensions
Features
Applications

Specifications

Drain-Source Voltage (V_DSS)	900 V
Continuous Drain Current (I_D)	24 A
Pulse Drain Current (I_DM)	96 A

Frequently asked questions

What are the applications for this MOSFET?

The device is suitable for DC-DC converters, battery chargers, switched-mode power supplies, and AC motor control.

What is the maximum operating temperature?

The junction temperature (T_J) ranges from -55°C to +150°C.
