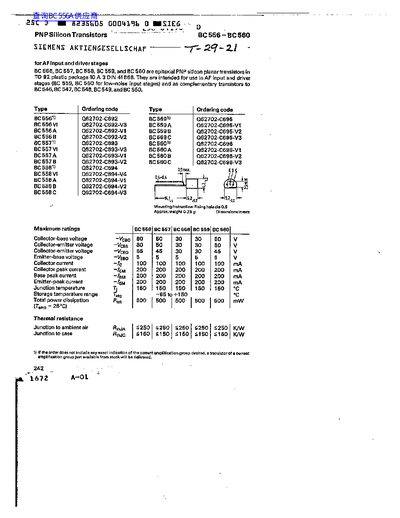

This document provides technical specifications for the Siemens BC 556, BC 557, BC 558, BC 559, and BC 560 series of epitaxial PNP silicon planar transistors. These components are housed in TO 92 plastic packages and are designed for use in AF input and driver stages, with specific models like the BC 559 and BC 560 noted for low-noise input applications. They are also intended to serve as complementary transistors to the BC 546, BC 547, BC 648, BC 549, and BC 550 series.
| Package type | TO 92 plastic package |
|---|---|
| Collector current | 100 mA |
| Junction temperature | 160 °C |
| Total power dissipation | 500 mW |
| Collector-base voltage | 80 V |
| Collector-emitter voltage | 50 V |
| Emitter-base voltage | 5 V |
| Storage temperature range | -65 to +150 °C |
| Thermal resistance Junction to ambient | <250 K/W |
They are intended for use in AF input and driver stages.
The BC 559 and BC 560 models are intended for low-noise input stages.
They are complementary to BC 546, BC 547, BC 648, BC 549, and BC 550.
