BGA 310 is a silicon bipolar MMIC amplifier with a cascading 50Ω gain block, 9 dB typical gain at 1.0 GHz, 9 dBm typical P-1dB at 1.0 GHz, and a 3 dB bandwidth from DC to 2.4 GHz.

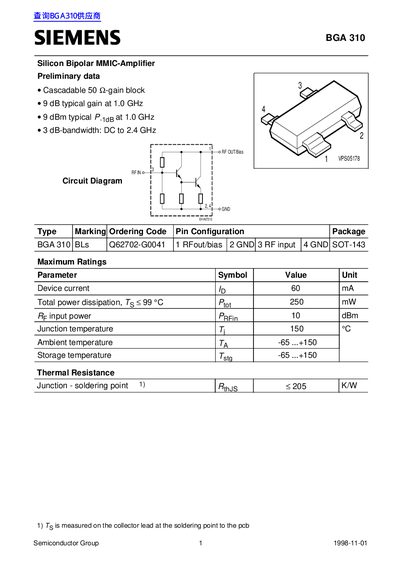

This document provides preliminary technical data for the Siemens BGA 310, a cascable 50 Ohm gain block Silicon Bipolar MMIC-Amplifier. It is designed with a typical gain of 9 dB at 1.0 GHz and a 3 dB bandwidth extending from DC to 2.4 GHz.
| Device current (Ip) | 60 mA |
|---|---|
| Total power dissipation (Prot) | 250 mW |
| Ag input power (Paein) | 10 dBm |
| Junction temperature (Tj) | 150 °C |
| Ambient temperature range | -65 ...+150 |
| Insertion power gain at 1 GHz | 9 dB |
| 3 dB-bandwidth | DC to 2.4 GHz |
The amplifier provides a typical gain of 9 dB at 1.0 GHz.
The maximum total power dissipation is 250 mW when the temperature is below 99 °C.
