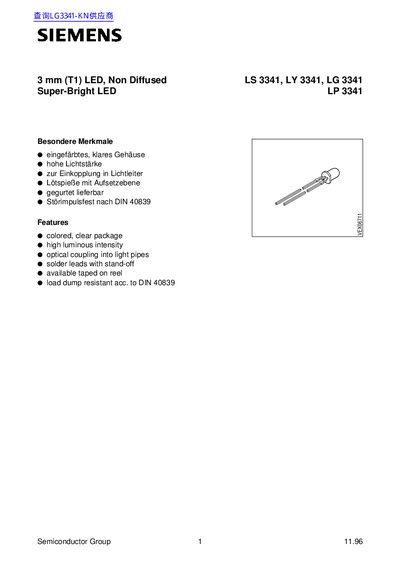

Siemens LS 3341 Series Super-Bright LED Datasheet

This datasheet provides detailed information of LS 3341, LY 3341, LG 3341 LP 3341 series LED, including product features, model, package color, emission color, luminous intensity, etc.

Brand: Siemens
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 315 KB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: F575581C45AAAB1AE6D55A2CEEC036CE
PDF: Siemens LS 3341 Series Super-Bright LED Datasheet PDF

About this manual

This document provides technical specifications for the Siemens LS 3341, LY 3341, LG 3341, and LP 3341 series of super-bright LEDs. The datasheet details features such as high luminous intensity, optical coupling into light pipes, and load dump resistance according to DIN 40839. It lists various models available in different colors including super-red, yellow, green, and pure green.

What's inside

Besondere Merkmale
Features
Maximum Ratings
Grenzwerte
Characteristics
Kennwerte
Package Outlines
MaBzeichnung

Specifications

Thermal resistance (Junction / air)	400 K/W
Approx. weight	0.15 g

Frequently asked questions

What is the load dump resistance standard for these LEDs?

The LEDs are load dump resistant according to DIN 40839.

Are the solder leads with stand-off available?

Yes, the LEDs are available with solder leads with stand-off.
