Siemens BGA 425 MMIC Amplifier Datasheet

This document provides preliminary data and characteristics of the Si-MMIC amplifier introduced by BGA 425 Semiconductor Group in 1998. The amplifier features a multifunctional cascaded 50Ω block, good stability, high gain, and low noise figure.

Brand: Siemens
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 84 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 0F4CF964F3D22707747CE219C242E415
PDF: Siemens BGA 425 MMIC Amplifier Datasheet PDF

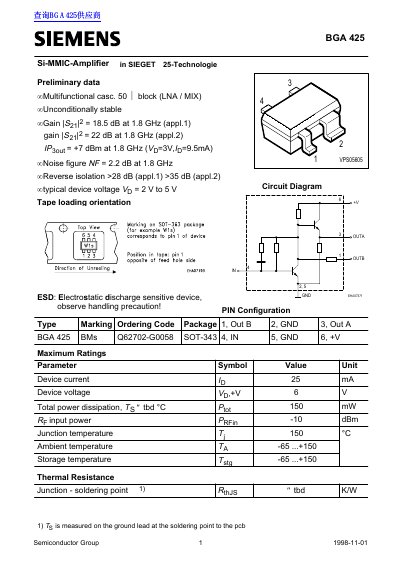

About this manual

This document provides preliminary data for the Siemens BGA 425, a multifunctional cascaded MMIC amplifier utilizing SIEGET® 25-Technologie. The device is unconditionally stable and available in an SOT-363 package, designed for applications requiring low noise figure and high gain at frequencies up to 3 GHz.

What's inside

Preliminary data
Circuit Diagram
Maximum Ratings
Electrical Characteristics
Typical configuration
S-Parameters
Spice model

Specifications

Gain at 1.8 GHz (Application 1)	18.5 dB
Noise figure at 1.8 GHz	2.2 dB
Device voltage range	2 V to 5 V
Package type	SOT-363

Frequently asked questions

What is the typical device voltage range for this amplifier?

The typical device voltage ranges from 2 V to 5 V.

How much insertion power gain does it provide at 1.8 GHz in application 1?

It provides an insertion power gain of 18.5 dB at 1.8 GHz.

What is the maximum allowed device voltage?

The maximum device voltage is 6 V.
