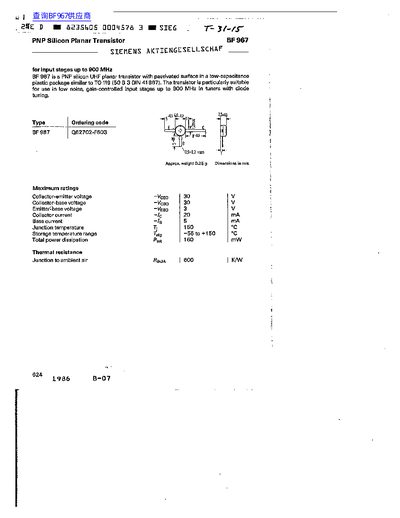

The document describes the Siemens BF 967 as a PNP silicon UHF planar transistor with a passivated surface in a low-capacitance plastic package similar to TO-119. It is particularly suitable for use in low noise, gain-controlled input stages up to 900 MHz in tuners with diode tuning.
The datasheet lists maximum ratings such as collector-emitter voltage of 30 V and junction temperature of 150 °C. It also details static characteristics like DC current gain greater than 60 and dynamic characteristics including a transition frequency (fT) of 950 MHz.
| Collector-emitter voltage (Vceo) | 30 V |
|---|---|
| Collector current (Ic) | 20 mA |
| Junction temperature (Tj) | 150 °C |
The maximum collector-emitter voltage is rated at 30 V.
The total power dissipation must not exceed 160 mW.
